Scalable Vector Graphics (SVG) is a file format that allows you to scale images without losing the quality of the image. Currently, OMIQ supports SVG export of graphs and box plots produced in the Graph Viewer task and box plots or bar charts in the Figure task. For exporting other plots and figures as SVG, follow the steps of Produce SVG Files for Your Plots and Figures section in this article.
1. Export SVG Files of Graphs and Box Plots in Graph Viewer
1.1 Add a Graph Viewer Task

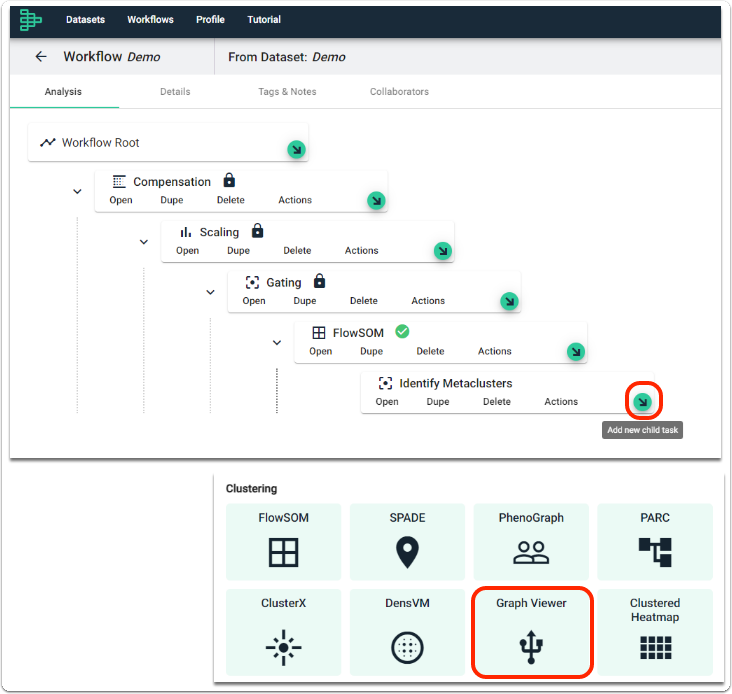

Click Add new child task and select Graph Viewer from the task selector.
Once inside the Graph Viewer task, you can configure what is displayed and aesthetics of your graph and box plot using the Graph Settings.
1.2 Export the Graph and/or Box Plot/s as SVG

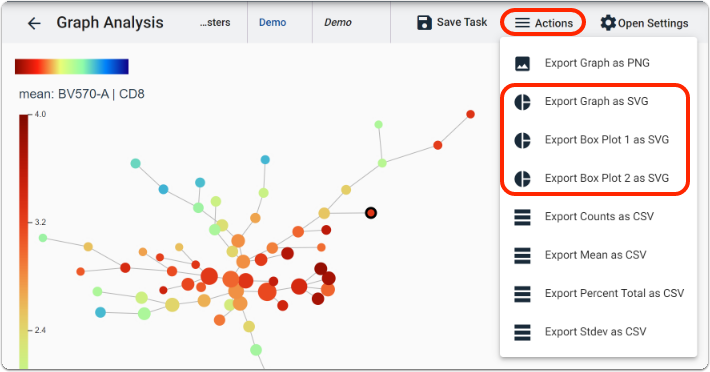

Click on Actions. Select either Export Graph as SVG, Export Box Plot 1 as SVG, or Export Box Plot 2 as SVG.
2. Export Box Plots or Bar Charts as SVG in Figure
2.1 Add a Figure Task

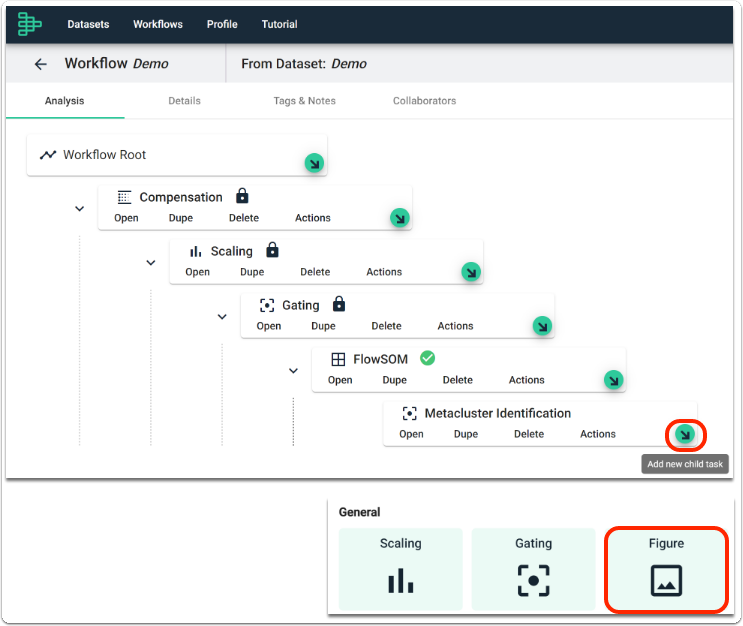

Click Add new child task and select Figure from the task selector.
Create either a Box Plot or Bar Chart and format it as desired.
2.2 Export the Box Plot or Bar Chart as SVG

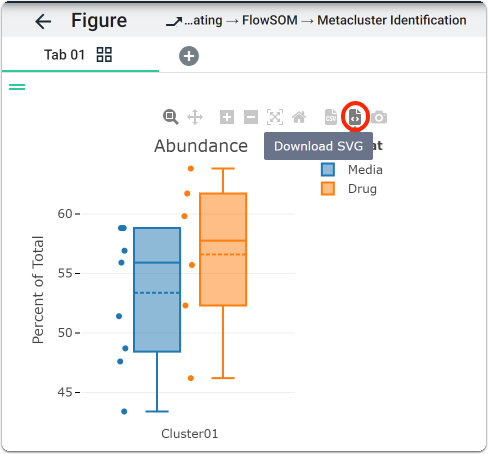

Hover over the plot and click on Download SVG.
3. Produce SVG Files for Your Plots and Figures
3.1 Add a Figure Task
Add a Figure task as detailed in Step (2.1) above.
Create your desired figure/s and plot/s. See our Create a Plot in Figure to learn more.
3.2 Export Figures as PPT Objects (Vector)

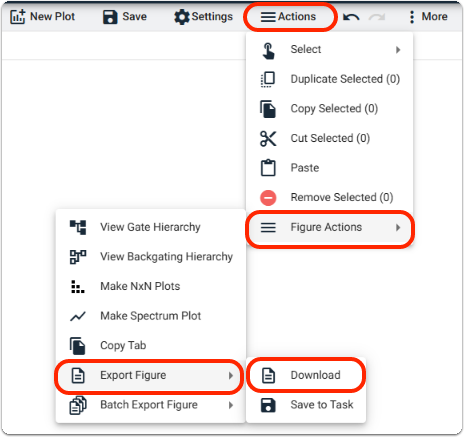

Click Actions. Select Figure Actions. Select Export Figure and click on Download.

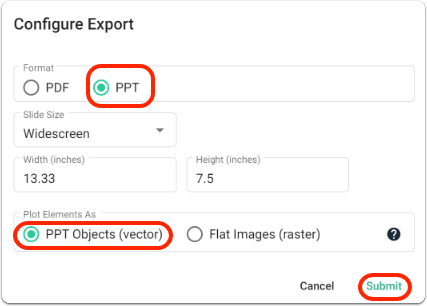

Select PPT. Select PPT Objects (vector). Click Submit.
Once you have setup a plot that you would like to use as a basis for all your files, you can easily export these out by using Batch Export. To learn more about this, please see our article Easily Create Reports Through Batch Export.
3.3 Save As SVG in PowerPoint

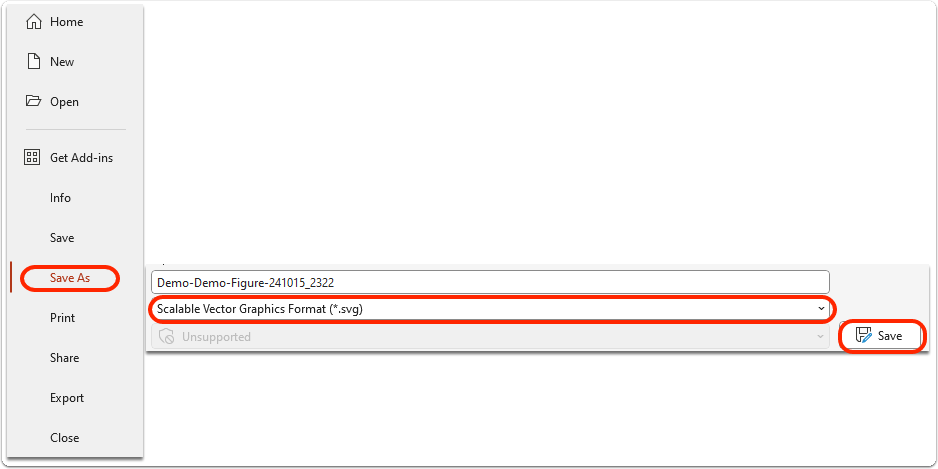

Open the file in Microsoft PowerPoint. Go to Save As. Select Scalable Vector Graphics Format (*.svg). Click Save.
