Spectrum Plots allow you to display the entire spectrum of selected features. This is commonly used to visually review a spectral unmixing matrix but has other creative uses.
The Make NxN Plots action is only available in Grid Mode, it is not yet available in Canvas Mode.
1. Select Make Spectrum Plot

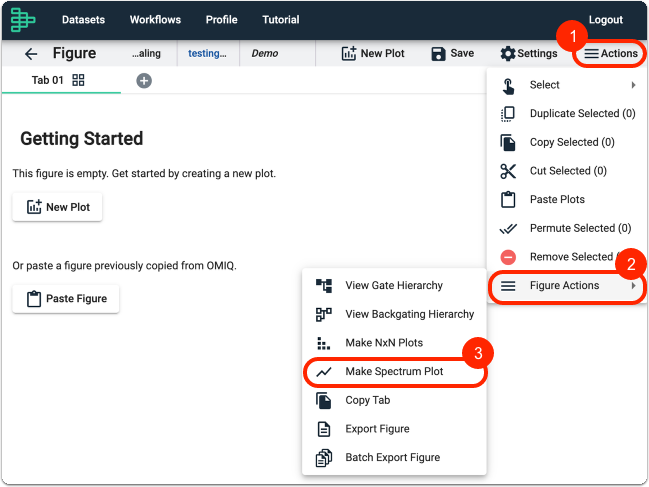

Add a Figure task to your workflow. Select ꠵ Actions ➝ Figure Actions ➝ Make Spectrum Plot.
2. Choose which Features to Display

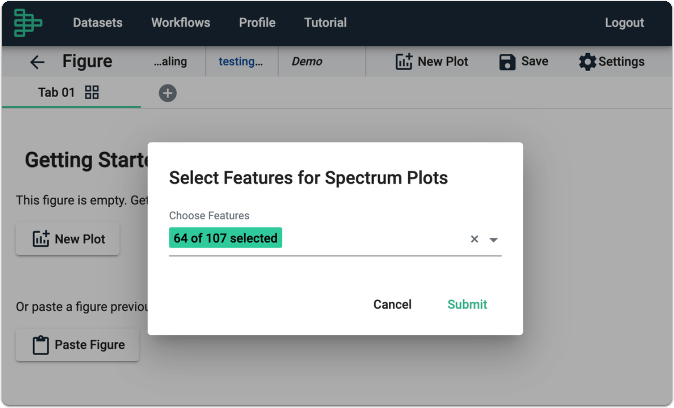

Select the Features for Spectrum Plots, and click Submit. Here we have chosen the same Features used in the Create Spectral Unmixing Matrix task.
3. (Optional) Customize

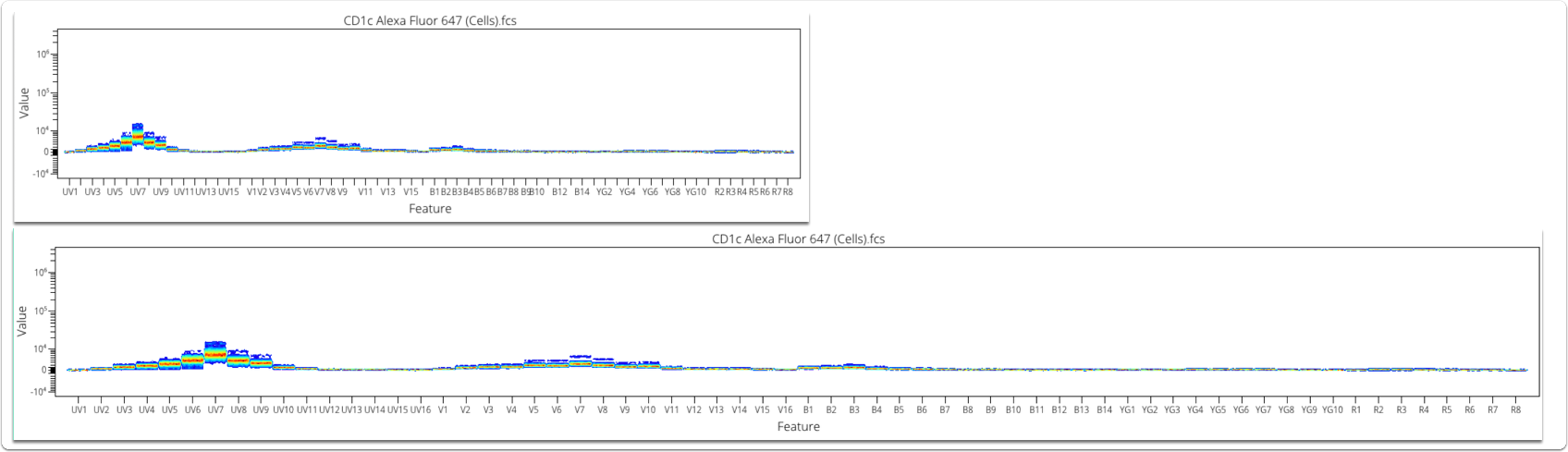

By default your plots will look like the top image above. If you are creating these plots for the purpose of reviewing a spectral unmixing matrix, or with many features, you may want to make a super wide plot. If you wish to end up with a Spectrum Plot that looks like the lower image, follow these steps. Select the plot ➝ if not already visible, click Settings ➝ increase the X Resolution. You can also change the Lane Width %.

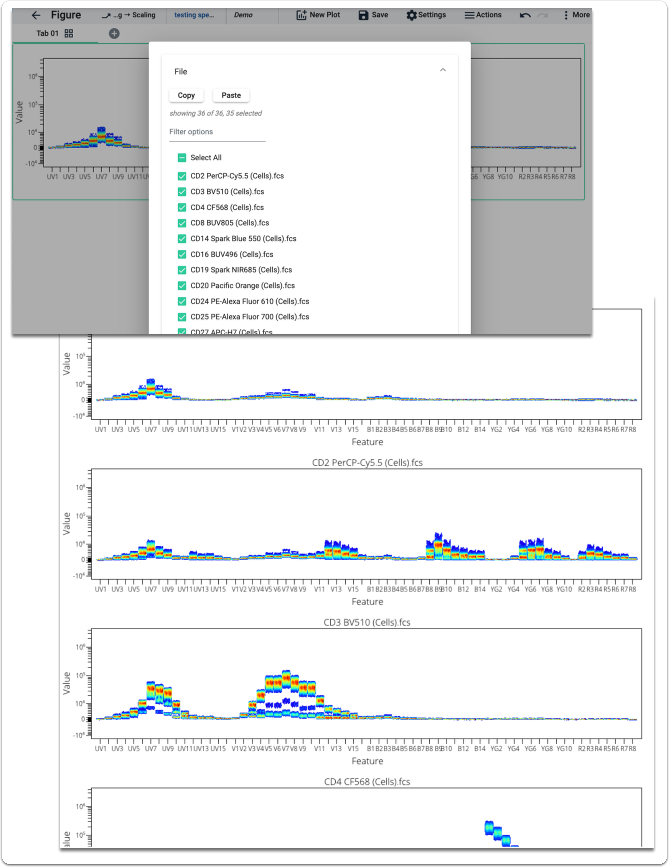

4. Bonus Step: View Spectrum Plot for all your (control) Files
Click here to view our guide on Generating Figures Rapidly Using Permute
