Multi NxN Plots allow you to display combinations of Features. This is commonly used to visually review a compensation spillover matrix or a spectral unmixing matrix.
The Make NxN Plots action is only available in Grid Mode, it is not yet available in Canvas Mode.

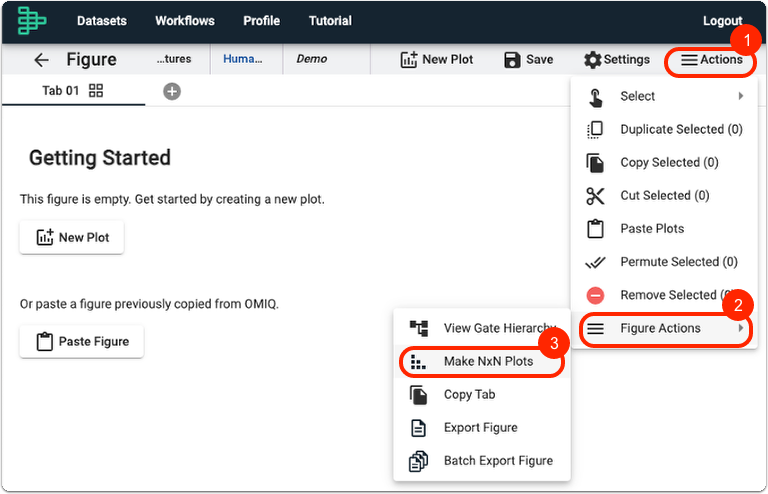

1. Select Make NxN Plots
Add a Figure task to your workflow. Select ꠵ Actions ➝ Figure Actions ➝ Make NxN Plots.

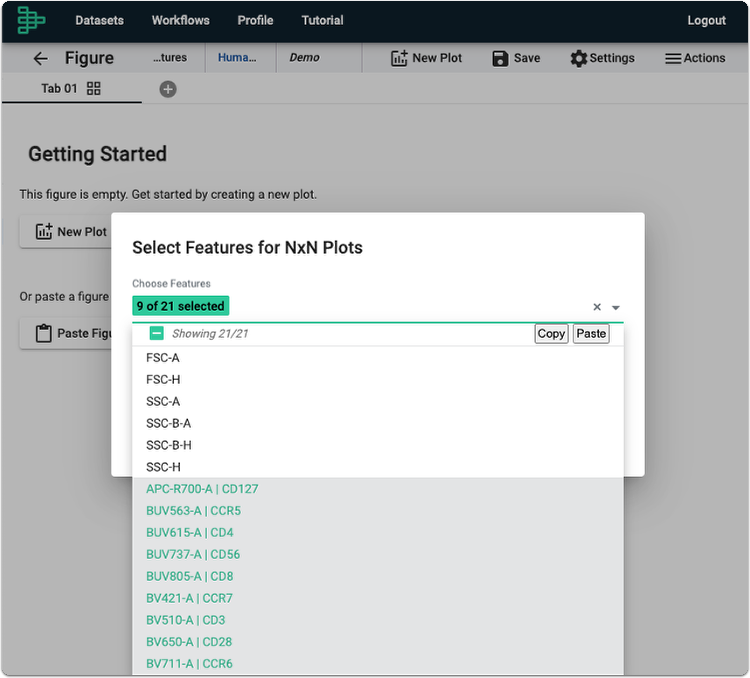

2. Choose which Features to Display
Select the Features for NxN Plots, if you want to include a histogram at the end of each row, and click Submit.

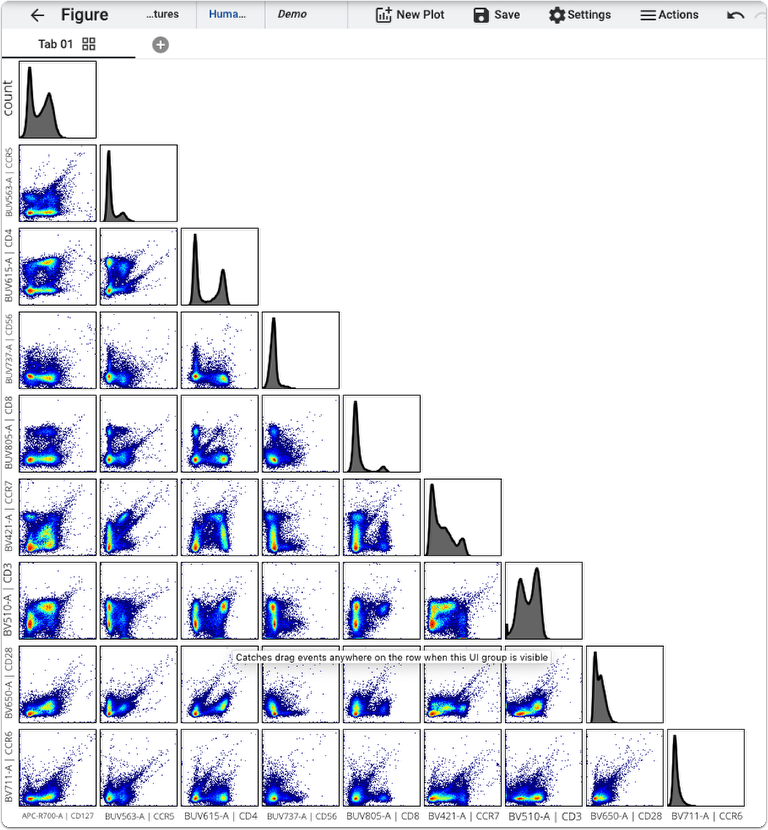

3. View your many plots in all their glory
